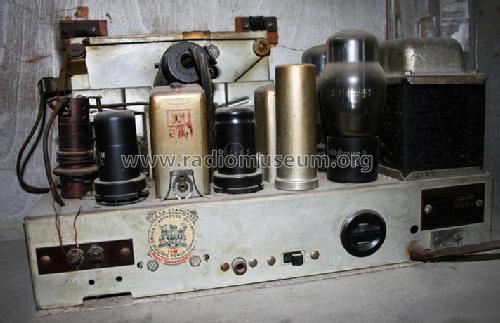

A-2 ; RCA Victor (ID = 645606) Radio A-2 ; RCA Victor (ID = 645757) Radio
A-2 ; RCA Victor (ID = 645755) Radio A-2 ; RCA Victor (ID = 645609) Radio
A-2 ; RCA Victor (ID = 595693) Radio A-2 ; RCA Victor (ID = 645758) Radio
Use red slider bar for more.
A-2 ; RCA Victor (ID = 645606) Radio
RCA Victor: A-2 [Radio] ID = 645606 398x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-2, RCA Victor (International), Montreal:
Picture sent by contact form by guest Gordon Dinsmore, Meaford Ont., Canada.

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SK7 6SQ7 6F6G 6U5 5Y4G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: A-2 - RCA Victor International,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 24 x 38 x 12 inch / 610 x 965 x 305 mm
Notes The A-2 plate shows "Made in Canada" and "RCA Victor Company Ltd. Montreal Canada. The plate reads A-2, not A2. The schematic shows a field coil for the loudspeaker. The model A-2 has 6 programmable push buttons for stations and 4 knobs. The range is for short wave 6 to 20 mc and broadcast is inclusive 1700 kc for Police.
Source of data -- Original-techn. papers.
Mentioned in Pre-War Consoles (Volume 1939-1940 page 3)

Model page created by Ashis Mukerjea. See "Data change" for further contributors.
