RCA Victor: A31 [Radio] ID = 590097 509x567
Select picture or schematic to display from thumbnails on the right and click for download.
For model A31, RCA Victor (International), Montreal

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6SK7 6SA7 6SK7 6SQ7 6U5 6F6G 5Y4G
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 3 W (4.5 W max.)
from Radiomuseum.org Model: A31 - RCA Victor International,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 29 x 39.25 x 13.5 inch / 737 x 997 x 343 mm

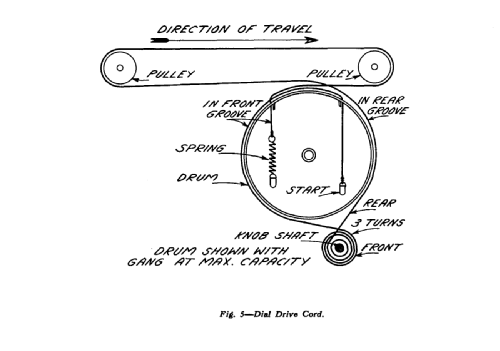

Notes

The Canadian RCA Victor model A31 has station buttons. The schematic (at Radio College of Canada) shows that the Canadian General Electric model JK-70 (table) and JK-76 (console) share the same schematic, and also share the same schematic as the Canadian RCA Victor A-22 (table). They have a built in loop antenna, called Beam-A-Scope. The wave bands are: Standard Broadcast (A) 540 - 1550 kHz, Short Wave (B) 2300 - 7500 kHz, 31 meter band 94950 - 9700 kHz, 25 m 11,680 - 11,920 kHz, 19 m 15,030 - 15,380 kHz and 16 - 13 m 17,700 - 22,000 kHz. The power Supply Ratings are for "A" 50-60 Hz, for "B" 25 - 60 Hz.

Source of data -- Original-techn. papers.
Mentioned in Volume 1939-1940 page 51
Literature/Schematics (1) Pre-War Consoles
Literature/Schematics (2) Radio College of Canada (RCC) (1939/40 Sheet 46 and 48.)

Model page created by Ashis Mukerjea. See "Data change" for further contributors.
