A552 ; RCA Victor (ID = 832817) Radio

A552 ; RCA Victor (ID = 832818) Radio
A552 ; RCA Victor (ID = 2232329) Radio
Use red slider bar for more.
A552 ; RCA Victor (ID = 2232329) Radio

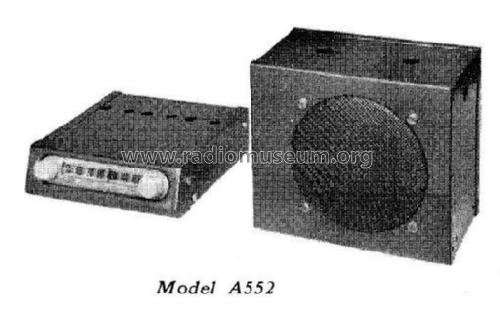

RCA Victor: A552 [Radio] ID = 2232329 512x322
Select picture or schematic to display from thumbnails on the right and click for download.
For model A552, RCA Victor (International), Montreal:
From service manual.

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AV6 6AQ5 6X4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: A552 - RCA Victor International,
Material Metal case
Shape Chassis only or for «building in»
Notes Vibrator for +B.
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Canada schematics RCA Victor page 144,145

Model page created by Dirk Taekels. See "Data change" for further contributors.
