A558X ; RCA Victor (ID = 2232352) Car Radio

A558X ; RCA Victor (ID = 2232353) Car Radio
A558X ; RCA Victor (ID = 2232351) Car Radio
Use red slider bar for more.
A558X ; RCA Victor (ID = 2232351) Car Radio
RCA Victor: A558X [Car Radio] ID = 2232351 370x253
Select picture or schematic to display from thumbnails on the right and click for download.
For model A558X, RCA Victor (International), Montreal:
From service manual.

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1951 ? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: 12BE6 12BA6 12AV6 6AQ5 6X4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 2 W (3.5 W max.)
from Radiomuseum.org Model: A558X - RCA Victor International,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 6 x 1.75 x 7.5 inch / 152 x 44 x 191 mm
Notes

The Canadian RCA Victor model A558X is a 5-tube radio for 12V negative ground cars. Uses vibrator for B+ supply. Model A558 is similar but for 6V cars.

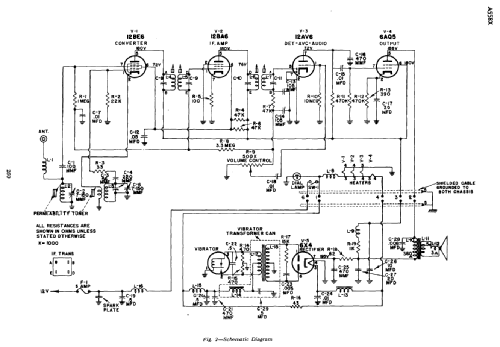

Literature/Schematics (1) RCA Service Manual Vol 5 P. 259

Model page created by Tom Seeger. See "Data change" for further contributors.
