RCA Victor: A-23 [Radio] ID = 1698526 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-23 1st Production, RCA Victor (International), Montreal

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6SA7 6SK7 6SQ7 6K6G 5Y4G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 2 W (4 W max.)
from Radiomuseum.org Model: A-23 [1st Production] - RCA Victor International,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 14.5 x 9.75 x 7.75 inch / 368 x 248 x 197 mm
Notes

The RCA Victor model A-23 is a 5-tube table radio covering standard broadcast and the 31, 25 and 19 meter shortwave bands. The model A-23 was originally released with a 5" permanent  magnet speaker. The plate voltage of the 6K6 output tube was set at 235V. This allowed it to produce a clean output of 2 watts. RCA later released the A-23 (2nd Production) with a 5" electrodynamic speaker and reduced the plate voltage to 175V, thereby reducing the clean output to 1.25 watts.

Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
Price in first year of sale 54.95 CAD
Source of data - - Manufacturers Literature
Mentioned in -- Original prospect or advert

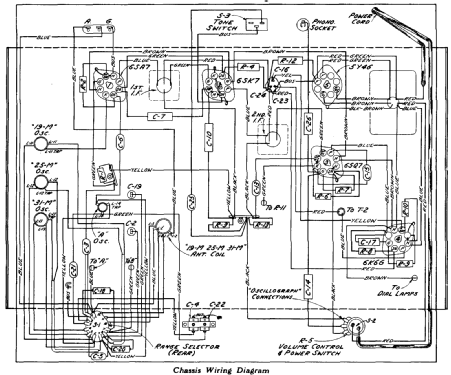

Literature/Schematics (1) RCA Service Manual Vol 3 P. 5

Model page created by Ashis Mukerjea. See "Data change" for further contributors.
