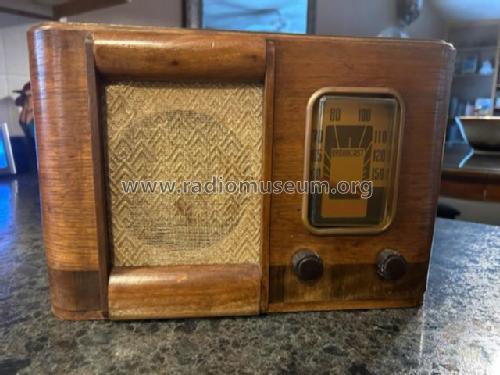

For model ACE, RCA Victor (International), Montreal:
RCA Canada ACE

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6SA7 6SK7 6SQ7 6K6G 5Y4G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: ACE - RCA Victor International,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 13 x 9 x 8 inch / 330 x 229 x 203 mm
Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Source of data -- Original-techn. papers.
Mentioned in Volume 1939-1940 page 87

Model page created by Ashis Mukerjea. See "Data change" for further contributors.
