- Country
- Argentina
- Manufacturer / Brand
- RCA Victor; Buenos Aires
- Year
- 1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165536
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 440 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 210-230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
- Power out
- 3.7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

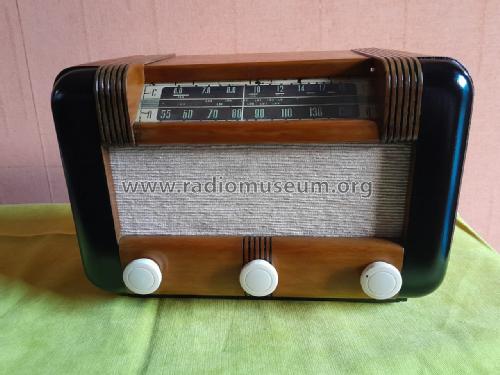

- Model: AQ-5 - RCA Victor; Buenos Aires
- Shape
- Tablemodel, with any shape - general.
- Notes
- Superheterodino de ambas corrientes con 5 válvulas y 4 bandas de sintonía: BC de 545 a 1500 Kc; 31M de 9645 a 9723 Kc; 25M de 11660 12007 Kc y 19M de 15052 a 15454 Kc. Parlante electrodinámico con bobina de campo de 850 ohms y bobina móvil de 3.25 ohms. Potencia de salida máxima sin distorsión: 2.7W, potencia máxima: 3.7W
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Mario Bermejo. See "Data change" for further contributors.
