B3 ; RCA Victor (ID = 2236587) Radio
RCA Victor: B3 [Radio] ID = 2236587 412x360
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3, RCA Victor (International), Montreal:

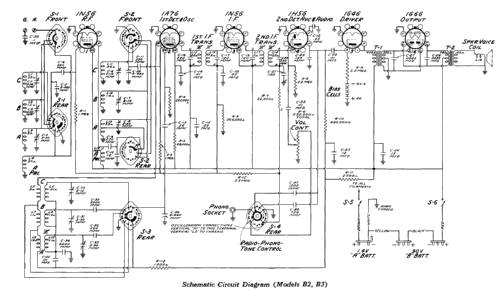

From service manual.

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1N5G 1A7G 1N5G 1H5G 1G4G 1G6G
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Storage and/or dry batteries / 1.5 & 2 x 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out 0.4 W (0.6 W max.)
from Radiomuseum.org Model: B3 - RCA Victor International,
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

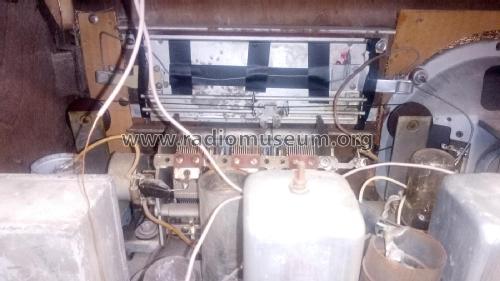

The Canadian RCA Victor model B3 is a 6-tube battery powered table radio. Covers standard broadcast and two shortwave ranges.

Literature/Schematics (1) RCA Service Manual Vol 2 P. 181

Model page created by Tom Seeger. See "Data change" for further contributors.
