• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 299411

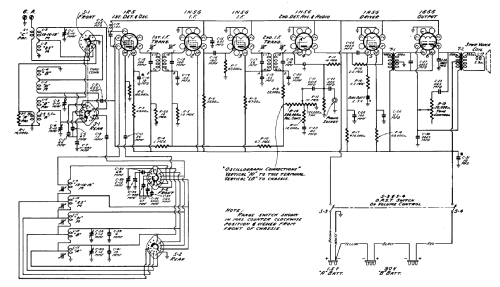

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1R5 1N5G 1N5G 1H5G 1A5G 1G6G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 1.5 & 2 x 45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.55 W (0.65 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: B67 - RCA Victor International,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 17 x 11.5 x 7.8 inch / 432 x 292 x 198 mm

• Notes

• The Canadian RCA Victor model B67 is a 6-tube battery powered table radio.
  Push-pull audio output. Covers the following ranges.

  Range	Frequency
  Broadcast "A"	540-1720 kHz
  Shortwave "B"	3-9.5 MHz
  31m	9.5-11 MHz
  25m	11.7-15 MHz
  13-16-19m	15.1-22.5 MHz

• Literature/Schematics (1)

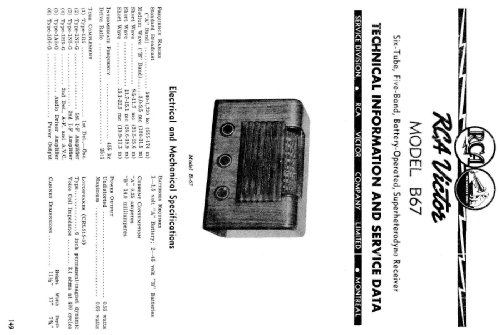

• RCA Service Manual Vol 3 P. 149

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
