Baby Nipper

Baby Nipper ; RCA Victor (ID = 831131) Radio

Baby Nipper ; RCA Victor (ID = 831132) Radio
Baby Nipper ; RCA Victor (ID = 2233778) Radio
Use red slider bar for more.
Baby Nipper ; RCA Victor (ID = 2233778) Radio
RCA Victor: Baby Nipper [Radio] ID = 2233778 540x414
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baby Nipper, RCA Victor (International), Montreal:
From service manual.

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12BA6 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.75 W (1.5 W max.)
from Radiomuseum.org Model: Baby Nipper - RCA Victor International,
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 8.6 x 5.1 x 4.5 inch / 218 x 130 x 114 mm
Notes

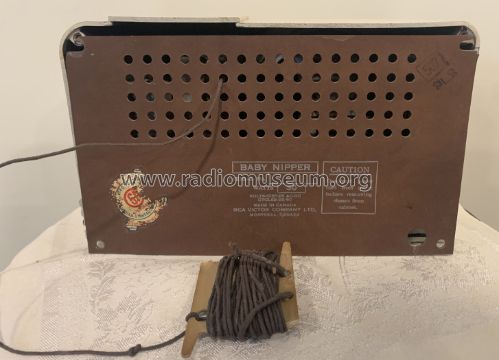

The Canadian RCA Victor model Baby Nipper is a small 5-tube mantle radio. Available in rose, brown, green and ivory colour cabinet. Has a wire hank antenna.

Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Canada schematics RCA Victor page 128,129
Literature/Schematics (2) RCA Service Manual Vol 4 P. 273

Model page created by Dirk Taekels. See "Data change" for further contributors.
