• Year
  • 1947/1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 182667

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 67.5 & 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
  • from Radiomuseum.org

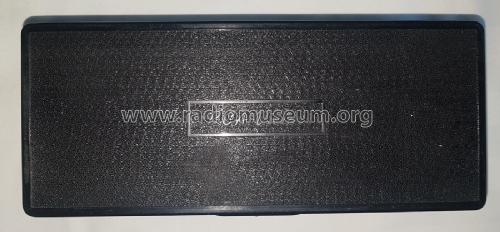

  • Model: BP-10A - RCA Victor International,
  • Dimensions (WHD)
  • 230 x 95 x 80 mm / 9.1 x 3.7 x 3.1 inch
  • Notes
  • Built in loop antenna.
  • Circuit diagram reference
  • Radio College of Canada
  • Literature/Schematics (1)
  • Canada schematics RCA Victor page 95
  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
