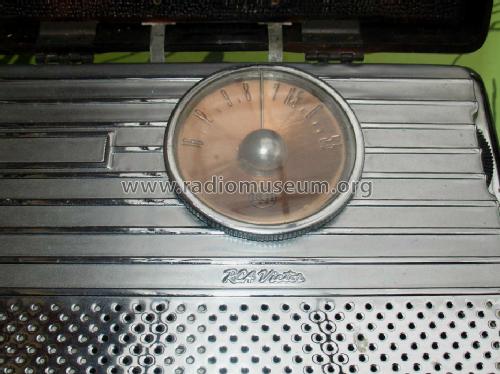

For model BP-4, RCA Victor (International), Montreal

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1946 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3S4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1.5 / 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: BP-4 - RCA Victor International,
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.5 x 3.25 x 4.25 inch / 165 x 83 x 108 mm
Notes Metal case with plastic lid & base. Speaker 2x3 inches. Battery life; 1.5v 3-5 Hours, 67.5v 25-40 Hours.
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) RCC sheet 65, & RCA Can vol 4, page 3.

Model page created by Keith Staines. See "Data change" for further contributors.
