BT4-1

BT4-1 ; RCA Victor (ID = 1096826) Radio

BT4-1 ; RCA Victor (ID = 2162961) Radio

BT4-1 ; RCA Victor (ID = 2162963) Radio
Use red slider bar for more.
BT4-1 ; RCA Victor (ID = 1096826) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1A6 34 32 33
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 & 90 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: BT4-1 - RCA Victor International,
Circuit diagram reference Radio College of Canada

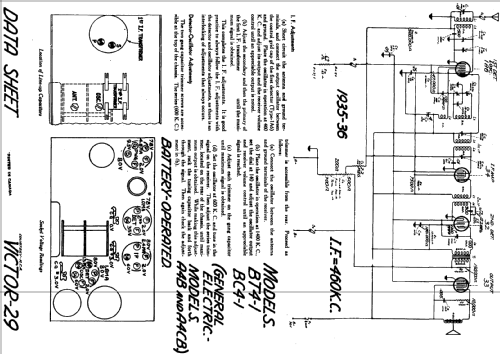

Mentioned in Data Sheet Victor-29

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
