BT504

BT504 ; RCA Victor (ID = 2153234) Radio

BT504 ; RCA Victor (ID = 2153235) Radio
BT504 ; RCA Victor (ID = 2232082) Radio
Use red slider bar for more.
BT504 ; RCA Victor (ID = 2232082) Radio
RCA Victor: BT504 [Radio] ID = 2232082 482x434
Select picture or schematic to display from thumbnails on the right and click for download.
For model BT504, RCA Victor (International), Montreal:

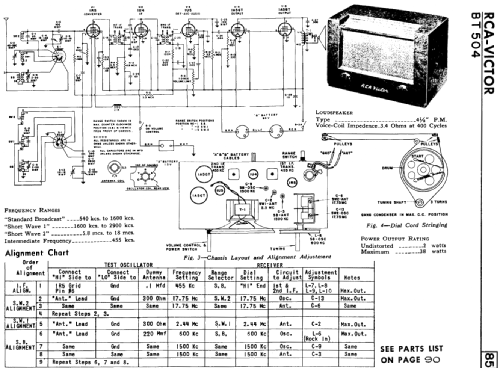

From service manual.

Country:  Canada
Manufacturer / Brand:  RCA Victor (International), Montreal
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1R5 1U4 1U5 1A5GT 1A5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 1.5 & 2 x 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out 0.2 W (0.38 W max.)
from Radiomuseum.org Model: BT504 - RCA Victor International,
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

The Canadian RCA-Victor model BT504 is a 5-tube battery powered table radio. Covers standard broadcast and 1.6 to 2.9 MHz and 5.8 to 18 MHz. Requires an external wire antenna.
