Victor-Phone Inter-Communication System MI-6350
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1939 ?
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 300021
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Front view with knobs

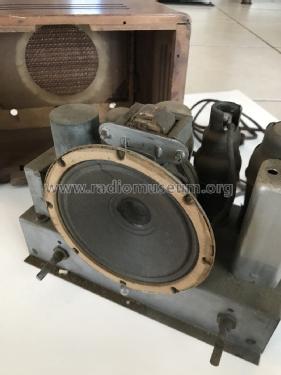

Cabinet view rear
Cabinet View top
Bottom view with label
- Number of Tubes
- 4
- Main principle
- Transceiver; ZF/IF 100 kHz
- Power type and voltage
- AC/DC-set / 105 - 130 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: Victor-Phone Inter-Communication System MI-6350 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10.75 x 7.75 x 6.625 inch / 273 x 197 x 168 mm
- Notes
-
Wireless intercom system, operating at 100 kHz. The unit can transmit either by wired connection between the units or by RF over power lines.
- Net weight (2.2 lb = 1 kg)
- 16 lb (16 lb 0 oz) / 7.264 kg
- Price in first year of sale
- 38.25 US $
- Mentioned in
- - - Manufacturers Literature (RCA Catalog 212 "Commercial Sound Section" circa 1939 and RCA Broadcast Equipment Catalog, 1940)
- Author
- Model page created by Douglas Burum. See "Data change" for further contributors.
