- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1931 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 294953

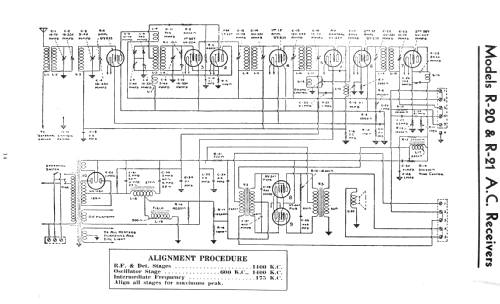

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105 to 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: R-20 - RCA Victor International,
- Notes
-
The Canadian RCA-Victor model R-20 is a 10-tube radio for broadcast reception. Requires an external antenna. For 25 to 40 Hz or 50 to 60 Hz depending on nameplate rating.
