- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1930/1931 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 319189

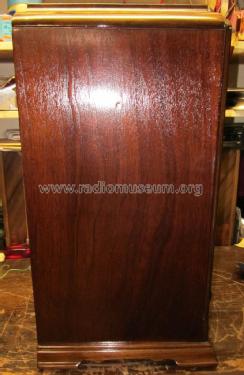

cabinet refinished
view shows model number and Canada
cabinet refiished
rca victor R7 ch front
rca victor R7 rear
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110V Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: R-7X - RCA Victor International,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 13 x 18.5 x 9.5 inch / 330 x 470 x 241 mm
- Notes
-
Unit has a clock in the center of the speaker.
Manufacturer is assumed to be RCA Montreal since it was found in Canada. It may be a model R-7 based on the tubes.
This is similar the GE model S22X
- Author
- Model page created by Garey Valcourt. See "Data change" for further contributors.
