- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1958 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 302404

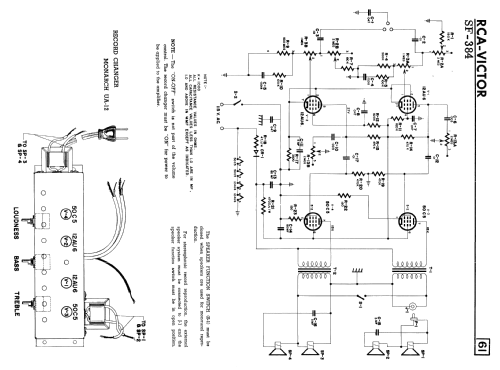

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 4 Loudspeakers
- from Radiomuseum.org
- Model: SF-384 - RCA Victor International,
- Notes
-
The RCA-Victor model SF-384 is a 4-tube stereo phonograph with automatic record changer. Has bass, treble controls and detachable external speaker.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1959 Supplement 46)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
