• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 302878

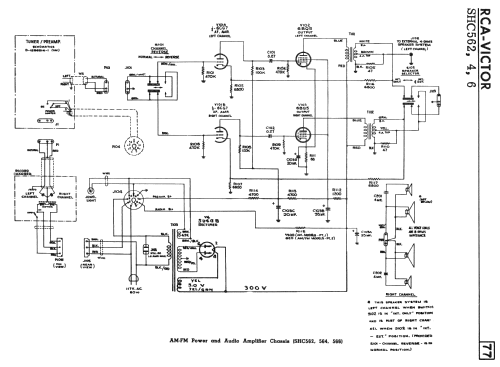

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6DT8 6BA6 6BA6 6AU6 6AL5 6BE6 6BA6 6AV6 6CG7 6CG7 6CG7 6BQ5 6BQ5 5U4GB

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 4 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• 60 Hz, 115 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 30 W (max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: SHC564 "The Glendon" - RCA Victor International,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The RCA-Victor model SHC564 is a 14-tube AM/FM console radio with built-in stereo record changer. Has a 10 inch woofer and 3.5 inch tweeter for each channel.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1960-61 Supplement 52)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
