• Year
  • 1962 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 309835

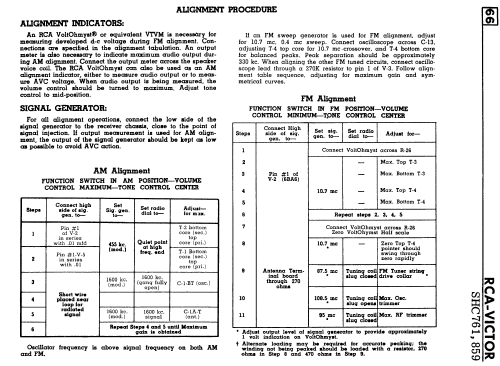

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 10 inch = 25.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SHC761 - RCA Victor International,
  • Shape
  • Console with any shape - in general
  • Notes
  • The RCA-Victor model SHC761 is a 9-tube AM/FM console radio with built-in stereo record changer. Has a 10 inch dual cone speaker for each channel.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
