U-61-X

RCA Victor; Buenos Aires

Data
Forum
Pictures
Collections

  • Year
  • 1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 151975

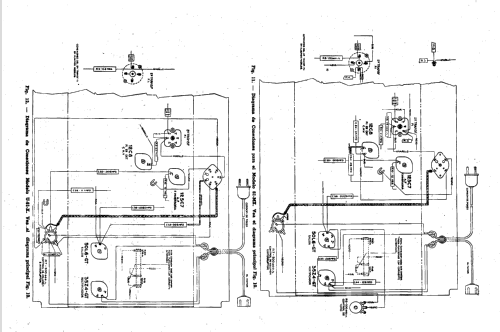

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • AC/DC-set / 210-230 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: U-61-X - RCA Victor; Buenos Aires
  • Shape
  • Console with any shape - in general
  • Notes
  • Radio consola gabinete de madera sin patas con tapa superior que oculta el tocadiscos con pickup a cristal. Ambas corrientes y 5 bandas de sintonía con ensanche de bandas en 3 gamas. Salida de audio push-pull con la válvula 50L6GT. Bandas: broadcasting de 540 a 1720 Khz, onda media de 3 a 9.5 Mhz, banda ensanchada 31M de 9.5 a 11.7 Mhz, ensanchada 25M de 11.7 a 15.1 Mhz y ensanchada 19/13M 15.1 a 22.5 Mhz. Parlante electrodinámico con campo de 700 ohms y 11.4omhs en bobina móvil. Controles de tono separados para graves y agudos y equipo fonográfico montado sobre tablero flotante. Este aparato posee un chassis muy similar al modelo 61-X excepto que va montado en forma vertical y posee controles de tono separados.
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by Mario Bermejo. See "Data change" for further contributors.
