• Year
  • 1941 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 299451

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 to 125 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: V5 - RCA Victor International,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 11.6 x 2.9 x 9.9 inch / 295 x 74 x 251 mm
  • Notes

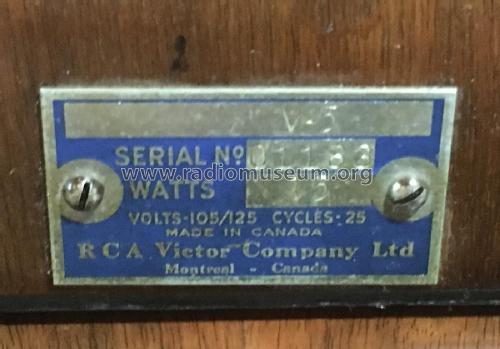

  • The Canadian RCA Victor model V5 is a manually operated 78 rpm record player with crystal phono pickup. For 25 or 60 Hz depending on nameplate rating.

  • Net weight (2.2 lb = 1 kg)
  • 6 lb (6 lb 0 oz) / 2.724 kg
  • Literature/Schematics (1)
  • RCA Service Manual Vol 3 P. 177
  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
