• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 191537

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BJ6 12SA7 6BJ6 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 1.75 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

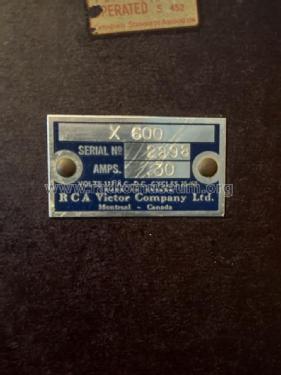

• Model: X600 - RCA Victor International,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.5 x 9.75 x 8.38 inch / 318 x 248 x 213 mm

• Net weight (2.2 lb = 1 kg)
• 10 lb (10 lb 0 oz) / 4.540 kg

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
