- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1953/1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248354
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.85 W (1.15 W max.)
- Material
- Plastics (no bakelite or catalin)

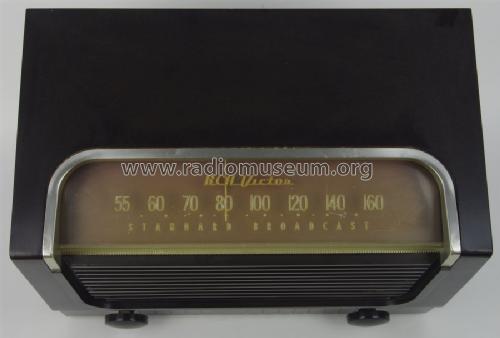

- from Radiomuseum.org
- Model: X608 - RCA Victor International,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11.875 x 8.75 x 6.875 inch / 302 x 222 x 175 mm
- Net weight (2.2 lb = 1 kg)
- 8.25 lb (8 lb 4 oz) / 3.746 kg
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 30)
- Author
- Model page created by Bruce Morgenstern. See "Data change" for further contributors.
