• Country
• Italy

• Manufacturer / Brand
• RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)

• Year
• 1995 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 256343

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Batteries / addl. power jack / DC 12/24 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

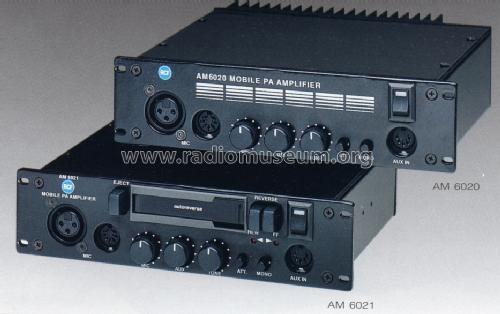

• Model: Mobile PA Amplifier AM 6020 - RCF; Reggio Emilia AEB

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 200 x 50 x 190 mm / 7.9 x 2 x 7.5 inch

• Notes

• Mobiler Stereo PA-Verstärker AM 6020,
  geeignet auch zum Festeinbau im Fahrzeug.
  Ausgang 10+10W bei 12V, 20+20W bei 24V Betriebsspannung, 4-16 Ohm,
  2 Universal-Eingänge Mikro 0,7mV/Tonträger 150mV mit Pegelsteller,
  Tonregler, Taste Stereo/Mono, Taste Musikabschwächung.



• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by a member from D. See "Data change" for further contributors.
