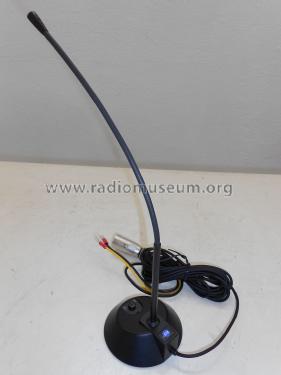

Unidirectional Desktop Gooseneck Microphone MC 5030
RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)
- Country
- Italy
- Manufacturer / Brand
- RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)
- Year
- 2000 ??
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 299354
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Direct Current supply (DC) / 9/48 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Unidirectional Desktop Gooseneck Microphone MC 5030 - RCF; Reggio Emilia AEB
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 90 x 340 x 0 mm / 3.5 x 13.4 x 0 inch
- Notes
-
Type:electret - directivity: unidirezionale cardioide - frequency response: 80 Hz ÷ 14.000 Hz - microphone sensitivity: - 75 dB ± 3 - output impedance: 200 Ω - signal/noise ratio: 61 dB - phantom power: 9 ÷ 48 V dc - connector: 3 poli XLR . Made in Italy.
- Net weight (2.2 lb = 1 kg)
- 0.350 kg / 0 lb 12.3 oz (0.771 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
