Giradischi Stereo RD 606

Giradischi Stereo RD 606; Reader's Digest; (ID = 760596) R-Player Giradischi Stereo RD 606; Reader's Digest; (ID = 760597) R-Player
Giradischi Stereo RD 606; Reader's Digest; (ID = 760595) R-Player Giradischi Stereo RD 606; Reader's Digest; (ID = 946909) R-Player
Giradischi Stereo RD 606; Reader's Digest; (ID = 946910) R-Player Giradischi Stereo RD 606; Reader's Digest; (ID = 946911) R-Player
Giradischi Stereo RD 606; Reader's Digest; (ID = 946912) R-Player Giradischi Stereo RD 606; Reader's Digest; (ID = 946914) R-Player
Giradischi Stereo RD 606; Reader's Digest; (ID = 946915) R-Player Giradischi Stereo RD 606; Reader's Digest; (ID = 2513638) R-Player
Use red slider bar for more.
Giradischi Stereo RD 606; Reader's Digest; (ID = 760596) R-Player
Reader's Digest;: Giradischi Stereo RD 606 [R-Player] ID = 760596 694x521
Select picture or schematic to display from thumbnails on the right and click for download.

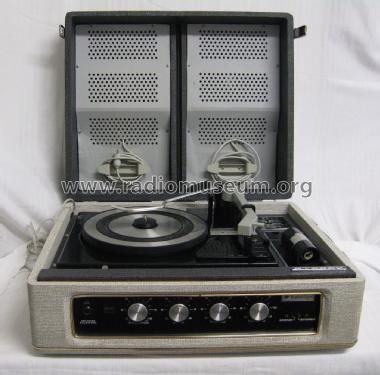

For model Giradischi Stereo RD 606, Reader's Digest; Italy

Country:  Italy
Manufacturer / Brand:  Reader's Digest; Italy
Year: 1965 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: AC125 AC126 AC127 AC128 AC125 AC126 AC127 AC128
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 125; 160; 220 Volt
Loudspeaker 2 Loudspeakers / Ø 15 cm = 5.9 inch
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Giradischi Stereo RD 606 - Reader's Digest; Italy
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 240 x 410 mm / 18.5 x 9.4 x 16.1 inch
Notes

Giradischi stereofonico con casse acustiche separabili dal mobiletto. Utilizza un piatto cambiadischi BSR MONARCH a 4 velocità 16-33-45-78 giri.

Testina stereo con puntina reversibile per 78 giri e per microsolco. Ingresso per registratore e radio FM, uscita per registratore.

Adattatore per dischi 45 giri con foro grande. Commutatore Stereo/Mono.

Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Source of data - - Data from my own collection

Model page created by Adriano Scarpa. See "Data change" for further contributors.



All listed radios etc. from Reader's Digest; Italy
Here you find 9 models, 9 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
