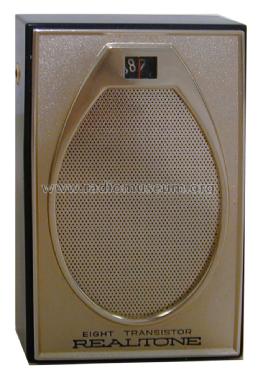

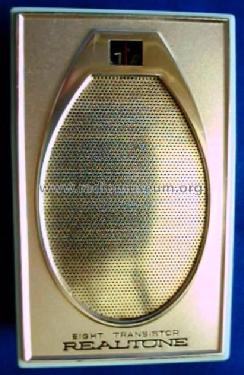

Eight Transistor "Aristocrat" TR-1843
Realtone Electronics Corp.; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Realtone Electronics Corp.; New York
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 82206
-
- alternative name: Realtone, NY
alltransistors.it
Q = ebay objnr: 320088206092
Q = ebay objnr: 320088206092
280298884489 / Pic. just as type proof!
ebay.com_284063466823 seller csch3524
eBay item number:155420761454
eBay item number:155420761454
eBay item number:155420761454
eBay item number:155420761454
eBay item number:155420761454
eBay item number:195712610531
eBay item number:195712610531
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Eight Transistor "Aristocrat" TR-1843 - Realtone Electronics Corp.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.625 x 4.25 x 1.125 inch / 67 x 108 x 29 mm
- Notes
-

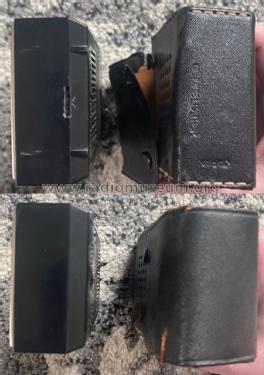

REALTONE Aristocrat TR-1843, 8 Transistor Radio; Earphone jack, dial window, various cabinet colors with different colored deluxe leather carrying case known, magnetic earphone and 9 V battery.
Similar to Vornado 8 Transistor.
Made in Japan
- Net weight (2.2 lb = 1 kg)
- 0.220 kg / 0 lb 7.8 oz (0.485 lb)
- Source of data
- Transistor Radios 1954-68
- Literature/Schematics (1)
- Collector's Guide To TrR1 Bunis trans.94 (Model info on page 227)
- Literature/Schematics (2)
- Transistor Radios (Model info on page 89)
- Literature/Schematics (3)
- Photofact TSM Transistor Radio Series SAMS (TSM-29, Oct. 1963)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
- Other Models
-
Here you find 136 models, 123 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
