Comet TR-1088

Comet TR-1088; Realtone Electronics (ID = 127482) Radio Comet TR-1088; Realtone Electronics (ID = 127484) Radio
Comet TR-1088; Realtone Electronics (ID = 127483) Radio Comet TR-1088; Realtone Electronics (ID = 127481) Radio
Comet TR-1088; Realtone Electronics (ID = 263429) Radio Comet TR-1088; Realtone Electronics (ID = 849442) Radio
Comet TR-1088; Realtone Electronics (ID = 849443) Radio Comet TR-1088; Realtone Electronics (ID = 1053215) Radio
Comet TR-1088; Realtone Electronics (ID = 1053217) Radio Comet TR-1088; Realtone Electronics (ID = 1053218) Radio
Use red slider bar for more.
Comet TR-1088; Realtone Electronics (ID = 127482) Radio
Realtone Electronics: Comet TR-1088 [Radio] ID = 127482 306x455
Select picture or schematic to display from thumbnails on the right and click for download.
For model Comet TR-1088, Realtone Electronics Corp.; New York:
?

Country:  United States of America (USA)
Manufacturer / Brand:  Realtone Electronics Corp.; New York
alternative name

Realtone, NY
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Comet TR-1088 - Realtone Electronics Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.75 x 4.25 x 1.25 inch / 70 x 108 x 32 mm

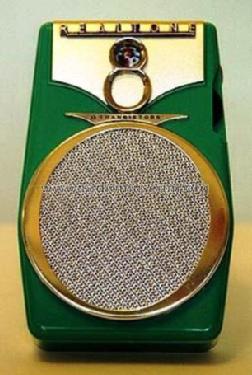

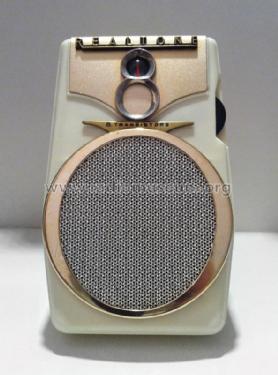

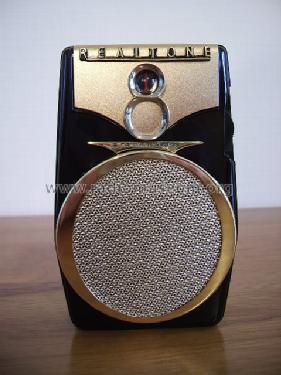

Notes The TR-1088 features a prominent gold medallion in the shape of an 8 framing the 'eye glass' tuning dial. This 8 stands for eight transistors of course. Other highlights include the shield like face beneath the Realtone badge and an additional '8 TRANSISTORS' badge separating the face and the large round speaker grill. These Realtone Comets can be found colored black, red, turquoise and ivory. They can also be found branded as a Valiant with the same model number.
Source of data Transistor Radios 1954-68
Mentioned in Collector's Guide To TrR1 Bunis trans.94 (1996, page 226)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 574, Folder 12 (revised))

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Realtone Electronics Corp.; New York
Here you find 121 models, 107 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
