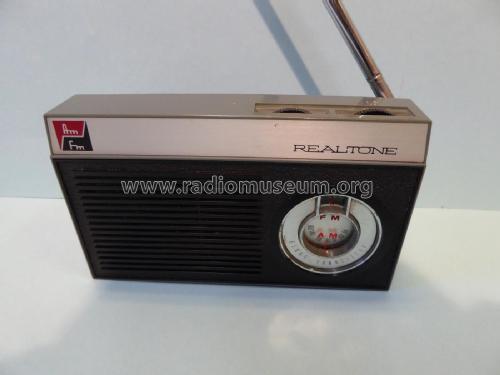

AM-FM Eight Transistor TR-2884
Realtone Electronics Corp.; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Realtone Electronics Corp.; New York
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 288811
-
- alternative name: Realtone, NY
Treibertrafo nicht Orginal
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 6F22: 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Power out
- 0.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AM-FM Eight Transistor TR-2884 - Realtone Electronics Corp.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 130 x 75 x 35 mm / 5.1 x 3 x 1.4 inch
- Notes
-
See similar radios with different brands and the same model number.
- Mentioned in
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 227)
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM-59, Sept. 1965)
- Author
- Model page created by Uwe Friedl. See "Data change" for further contributors.
