Battery Electric 2228-2

Realtone Electronics Corp.; New York

  • Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 216106
    • alternative name: Realtone, NY

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 4 AM circuit(s)     6 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 117 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Battery Electric 2228-2 - Realtone Electronics Corp.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

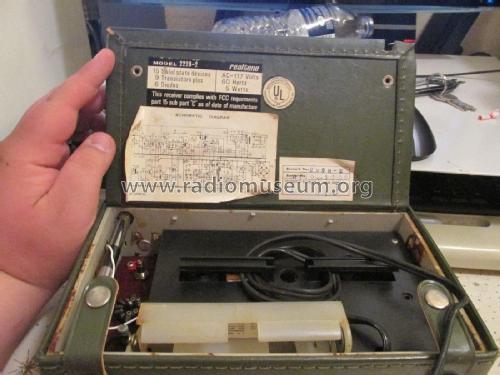

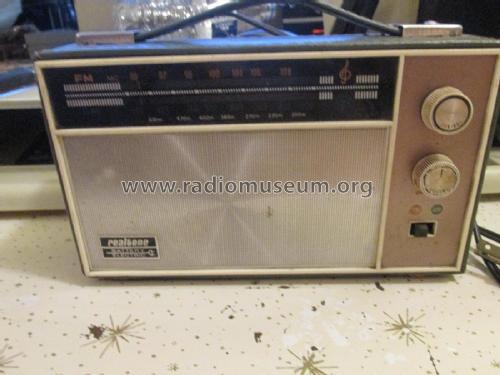

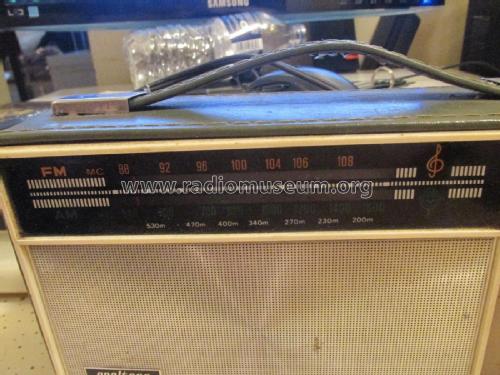

  • Realtone Battery Electric AM/FM Portable Radio Model 2228-2.

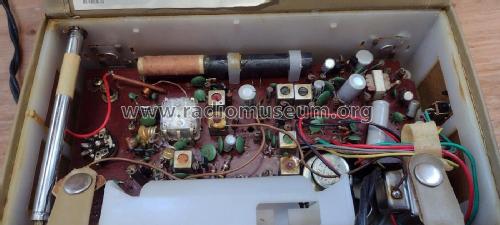

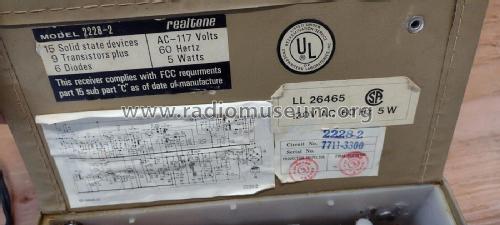

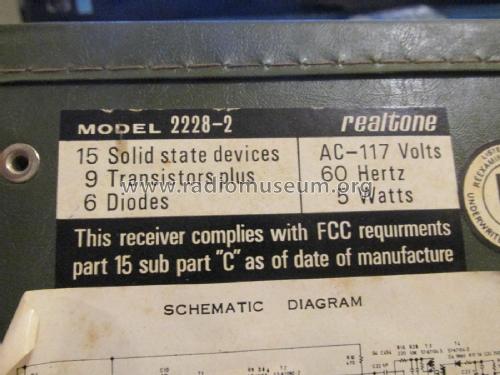

    15 Solid State devices (9 Transistors plus 6 Diodes).
    Telescopic antenna, Power Consumption 5 watts.
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
