For model Eight Transistor TR-1820, Realtone Electronics Corp.; New York:
Q = ebay objnr : 130220957293

Country:  United States of America (USA)
Manufacturer / Brand:  Realtone Electronics Corp.; New York
alternative name

Realtone, NY
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Eight Transistor TR-1820 - Realtone Electronics Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.5 x 4 x 1.25 inch / 64 x 102 x 32 mm
Notes

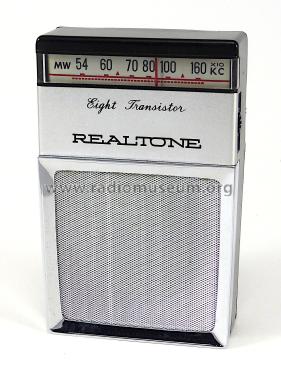

Realtone Eight Transistor Pocket Radio Model TR-1820.

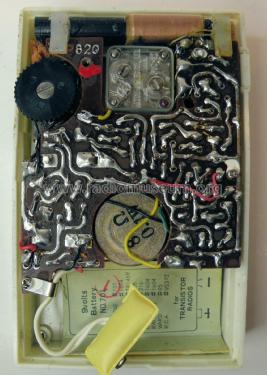

8 Transistors + 1 Thermistor and 1 Diode.

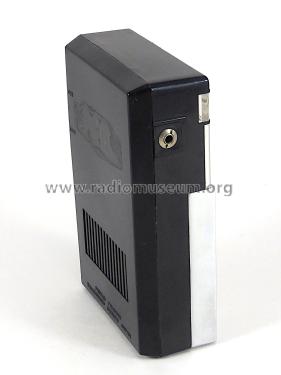

Earphone Jack, Leather Case.

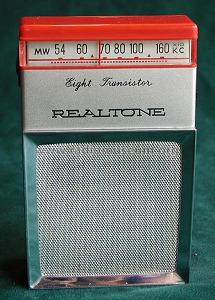

See similar models Lincoln TR-1820 and SounDesign TR-1820.

Source of data Transistor Radios 1954-68
Mentioned in Collector's Guide To TrR1 Bunis trans.94 (1996, page 227)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 620, Folder 12 (1963))

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
