Seven Transistor "Mercury" 1720 (Japan 604)

Realtone Electronics Corp.; New York

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 178339
    • alternative name: Realtone, NY

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 cm = 1.4 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Seven Transistor "Mercury" 1720 - Realtone Electronics Corp.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 68 x 65 x 28 mm / 2.7 x 2.6 x 1.1 inch
  • Notes

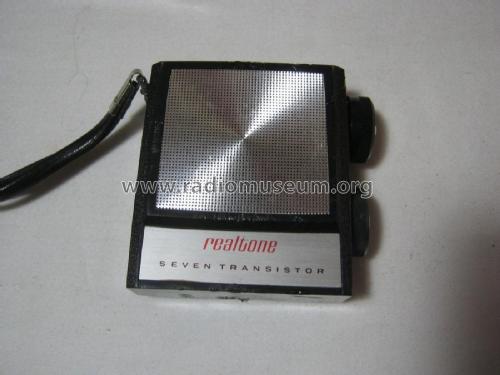

  • Small shirtpocket radio with hand strap and earphone jack.

    Made in Japan 604

  • Net weight (2.2 lb = 1 kg)
  • 0.1 kg / 0 lb 3.5 oz (0.22 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Guido Höh. See "Data change" for further contributors.
