• Country
• France

• Manufacturer / Brand
• Reela-Radio, Reela-Gees; Paris

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103046

• Number of Tubes
• 7

• Valves / Tubes
• EF89 ECH81 EF89 EBF89 EM34 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

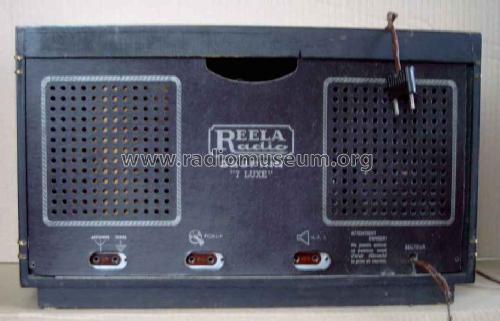

• Model: Dauphin 7 Luxe - Reela-Radio, Reela-Gees; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 275 x 200 mm / 18.9 x 10.8 x 7.9 inch

• Notes

• 4 gammes d'ondes dont 1 bande étalée.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 26533)

• Author
• Model page created by John Koster. See "Data change" for further contributors.

• Other Models

• Here you find 160 models, 145 with images and 20 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
