Sporting ; Reela-Radio, Reela- (ID = 1872112) Radio
Reela-Radio, Reela-: Sporting [Radio] ID = 1872112 1200x797
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sporting, Reela-Radio, Reela-Gees; Paris

Country:  France
Manufacturer / Brand:  Reela-Radio, Reela-Gees; Paris
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC71 OC72 OC72
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Sporting - Reela-Radio, Reela-Gees; Paris
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 160 x 80 mm / 8.7 x 6.3 x 3.1 inch
Notes

2 gammes d'ondes: GO, PO. 6 transistors + 1 diode. Ferrocapteur 200 x 10 mm. HP Musicalpha. Selecteur forme bouton tournant à 4 positions PO-GO sur Auto et Cadre. Condensateur variable marque Star. Prise antenne-voiture.

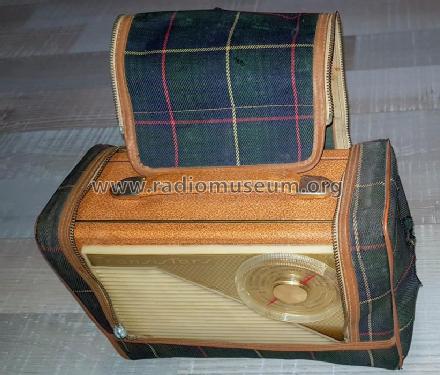

Coffret bois gainée plastique.

Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Mentioned in -- Original prospect or advert

Model page created by Alfred Przybilla. See "Data change" for further contributors.



All listed radios etc. from Reela-Radio, Reela-Gees; Paris
Here you find 154 models, 138 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
