• Country
• France

• Manufacturer / Brand
• Réga; Sèvres

• Year
• 1936 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116559

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6B7 42 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

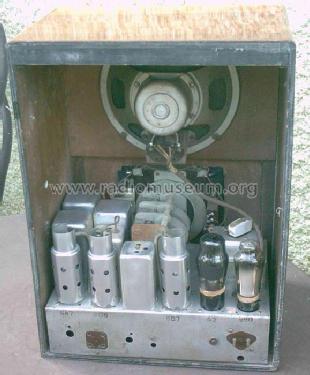

• Model: 1275 - Réga; Sèvres

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 340 x 460 x 270 mm / 13.4 x 18.1 x 10.6 inch

• Notes
• Mit Schattenzeiger.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
