• Country
• United States of America (USA)

• Manufacturer / Brand
• Regal; New York (NY)

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 55013

• • Brand: Ultradyne

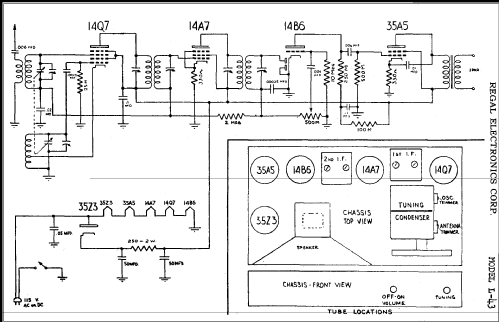

Click on the schematic thumbnail to request the schematic as a free document.

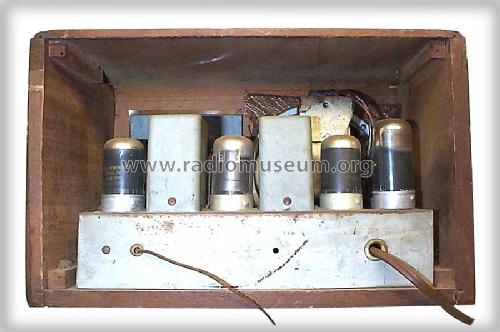

• Number of Tubes
• 5

• Valves / Tubes
• 14Q7 14A7 14B6 35A5 35Z3

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Material
• Wooden case

• from Radiomuseum.org

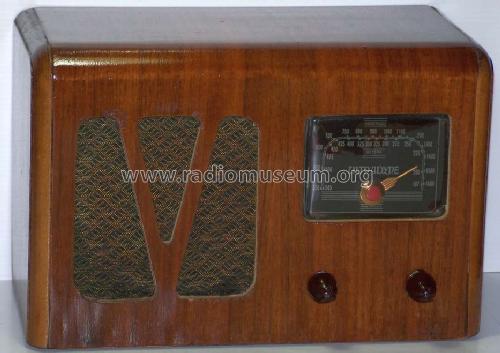

• Model: L-43 - Regal; New York NY

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 185 x 165 mm / 11.4 x 7.3 x 6.5 inch

• Net weight (2.2 lb = 1 kg)
• 2.7 kg / 5 lb 15.2 oz (5.947 lb)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Other Models

• Here you find 121 models, 72 with images and 87 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
