For model TR-1G Pocket Radio, Regency (brand of I.D.E.A.):
Regency TR1G Gray - Front

Country:  United States of America (USA)
Manufacturer / Brand:  Regency (brand of I.D.E.A.)
alternative name

Idea (I.D.E.A.)
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: 235_TI R09_TI R10_TI R11_TI DR117
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 22,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.7 inch = 6.9 cm
Power out
from Radiomuseum.org Model: TR-1G Pocket Radio - Regency brand of I.D.E.A.
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 3 x 5 x 1.25 inch / 76 x 127 x 32 mm
Notes

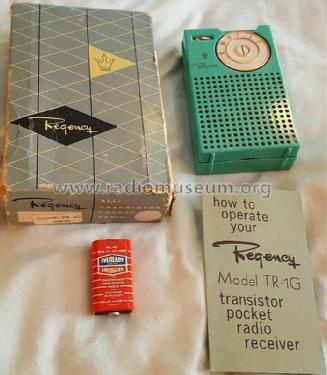

In October 1954 Regency brought with the TR-1 the first pocket radio of the world (as a product) into the market. This TR-1G was like a revival model and also the TR-4 from 1957. The TR-1G came in coral, yellow, black, turquoise or ivory. The dial knob has inner concentric circles.

Date of patent application (TR-1:   Mar. 25, 1955
Date patented:  Jun. 30, 1959

US Patent : 2,892,931

Mentioned in The Collector's Guide To Antique Radios 2. Edition
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (283-10 (1955))
Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Set 334 Folder 9 dated 10-56)
Literature/Schematics (3) Photofact Folder, Howard W. SAMS (Set 317 Folder 1, production changes bulletin 155)

Model page created by Ernst Erb. See "Data change" for further contributors.
