TR-6

TR-6 ; Regency brand of I.D (ID = 1819218) Radio

TR-6 ; Regency brand of I.D (ID = 1819219) Radio

TR-6 ; Regency brand of I.D (ID = 1819220) Radio

TR-6 ; Regency brand of I.D (ID = 1819221) Radio

TR-6 ; Regency brand of I.D (ID = 2346017) Radio
TR-6 ; Regency brand of I.D (ID = 661191) Radio TR-6 ; Regency brand of I.D (ID = 661192) Radio
TR-6 ; Regency brand of I.D (ID = 661193) Radio TR-6 ; Regency brand of I.D (ID = 661194) Radio
TR-6 ; Regency brand of I.D (ID = 1337174) Radio TR-6 ; Regency brand of I.D (ID = 1337175) Radio
TR-6 ; Regency brand of I.D (ID = 1337176) Radio TR-6 ; Regency brand of I.D (ID = 1337177) Radio
TR-6 ; Regency brand of I.D (ID = 1337178) Radio TR-6 ; Regency brand of I.D (ID = 1337179) Radio
Use red slider bar for more.
TR-6 ; Regency brand of I.D (ID = 661191) Radio

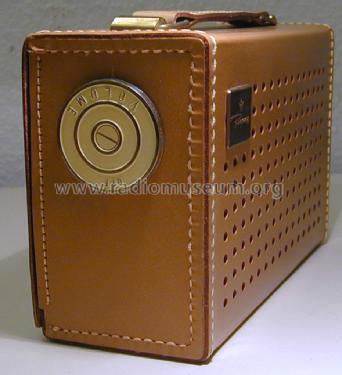

Regency brand of I.D: TR-6 [Radio] ID = 661191 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-6, Regency (brand of I.D.E.A.):
Ebay 320210092116 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Regency (brand of I.D.E.A.)
alternative name

Idea (I.D.E.A.)
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2N172 unknown_tr_NPN unknown_tr_NPN TI310 TI353 or. 2N186 TI353 or. 2N186
Main principle Super-Heterodyne (Super in general); ZF/IF 262 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details

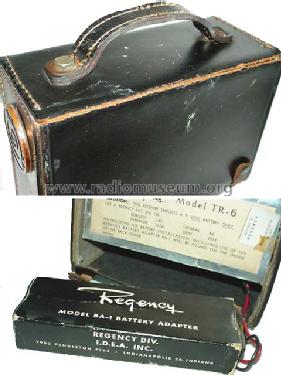

Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: TR-6 - Regency brand of I.D.E.A.
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.25 x 7.125 x 3.125 inch / 133 x 181 x 79 mm
Notes Leather handle.
Net weight (2.2 lb = 1 kg) 1.120 kg / 2 lb 7.5 oz (2.467 lb)
Collectors' prices
Mentioned in The Collector's Guide To Antique Radios 2. Edition
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 346 Folder 12 dated 2-57)

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Regency (brand of I.D.E.A.)
Here you find 60 models, 48 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Regency brand of I.D: TR-6
Threads: 1 | Posts: 2
Hits: 133     Replies: 1
regency: Wrong polarity of coupling cap
Marc Gianella
13.Jan.19
  1

Sams schematic shows the af coupling capacitor C2 with wrong polarity.

Günther Stabe
13.Jan.19
  2 Polarities of AF transistors X4 and X5 are wrong, too - these are PNP types.
