UHF Television Converter RC-600
Regency (brand of I.D.E.A.)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Regency (brand of I.D.E.A.)
- Year
- 1953 ?
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 166050
-
- alternative name: Idea (I.D.E.A.)

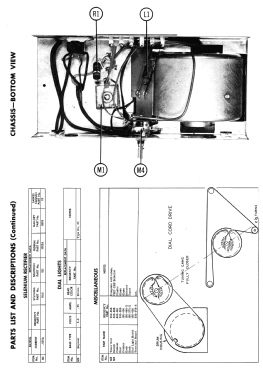

Sams Photofact Folder 8 Set 200 Date 4-53
Sams Photofact Folder 8 Set 200 Date 4-53

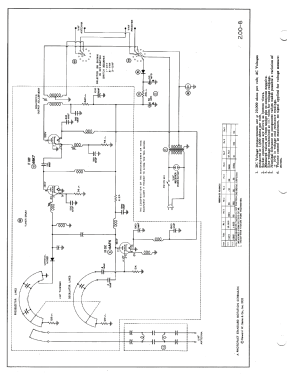

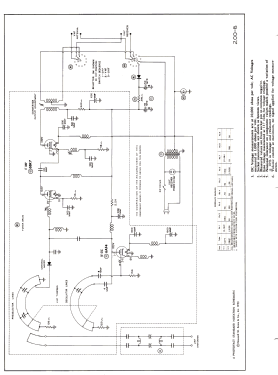

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- RF Converter/Adapter (not voltage converter)
- Wave bands
- Wave Bands given in the notes.
- Details
- Converter
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: UHF Television Converter RC-600 - Regency brand of I.D.E.A.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 11.5 x 8 x 8.5 inch / 292 x 203 x 216 mm
- Notes
- Regency RC-600 UHF Television Converter;
Crystal diode mixer, converts to US VHF TV channel 10 (8 - 13).
- Mentioned in
- Photofact Folder, Howard W. SAMS (Sams Photofact Folder 8 Set 200 Date 4-53)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
