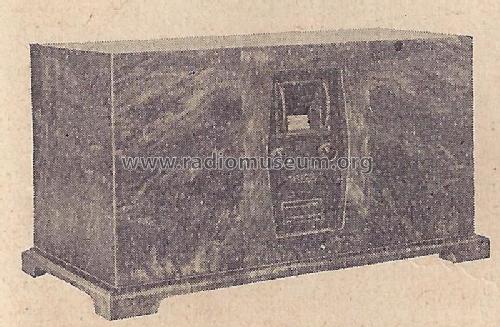

For model 200G, Reico Radio, Max Reinhardt & Co.; Berlin

Country:  Germany
Manufacturer / Brand:  Reico Radio, Max Reinhardt & Co.; Berlin
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1820 REN1821 REN1821 RENS1823d
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 200G - Reico Radio, Max Reinhardt &
Material Wooden case
Price in first year of sale 175.00 RM +
Source of data Radio-Schnorr-Katalog Nr.53 1931/32 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
