Europa Spezial G Ch= Standard G Halbkreis-Skala
Use red slider bar for more.

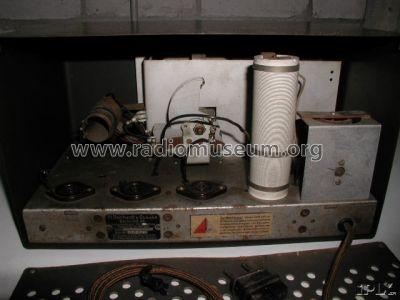

Reico Radio, Max: Europa Spezial G Ch= Standard G [Radio] ID = 4963 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1932/1933 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 3: RENS1820 RENS1820 RENS1823d |
|---|
| Main principle | TRF with regeneration; 1 AF stage(s); Anode bend detection |
|---|---|
| Tuned circuits | 2 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Direct Current supply (DC) |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: Europa Spezial G Ch= Standard G [Halbkreis-Skala] - Reico Radio, Max Reinhardt & |
| Material | Metal case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 348 x 204 x 195 mm / 13.7 x 8 x 7.7 inch |
| Notes | Offenbar wurden für die preiswertere "Spezial"-Version im Blechgehäuse einfach die "Standard"-Chassis verwendet. In Blech verbilligte sich ein solches Gerät immerhin um 17.-RM, also um fast 15%! |
| Price in first year of sale | 98.00 RM + |
| Source of data | Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb |
| Circuit diagram reference | Röhren in FS-Bestückungstabellen |
