For model Europa Standard G Halbkreis-Skala, Reico Radio, Max Reinhardt & Co.; Berlin:
eBay-Artikelnummer:284037532800 von awaman12

Country:  Germany
Manufacturer / Brand:  Reico Radio, Max Reinhardt & Co.; Berlin
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1820 RENS1820 RENS1823d
Main principle TRF with regeneration; 1 AF stage(s); Anode bend detection
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Europa Standard G [Halbkreis-Skala] - Reico Radio, Max Reinhardt &
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 365 x 240 x 195 mm / 14.4 x 9.4 x 7.7 inch
Price in first year of sale 115.00 RM +

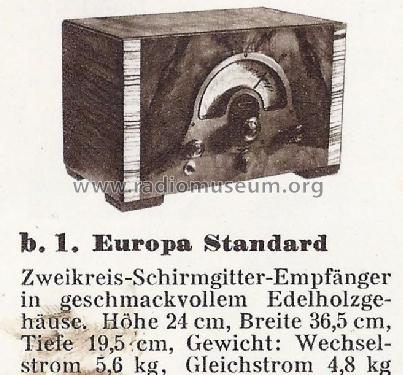

Source of data Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen

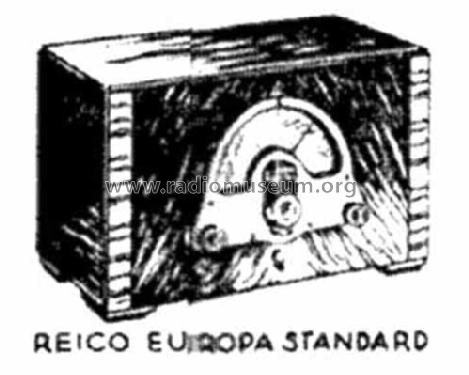

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
