Europa Standard G Kleine Fensterskala
Use red slider bar for more.
Reico Radio, Max: Europa Standard G [Radio] ID = 1732247 763x696

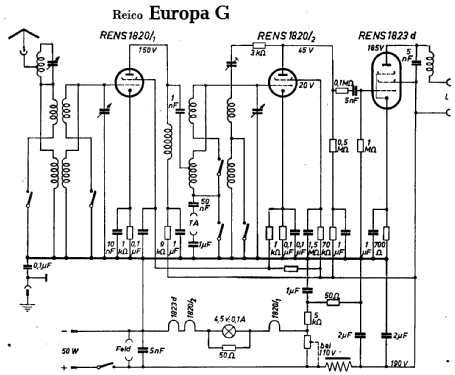

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1932 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 3: RENS1820 RENS1820 RENS1823d |
|---|
| Main principle | TRF with regeneration; 1 AF stage(s); Anode bend detection |
|---|---|
| Tuned circuits | 2 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Direct Current supply (DC) |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: Europa Standard G [Kleine Fensterskala] - Reico Radio, Max Reinhardt & |
| Material | Wooden case |
| Dimensions (WHD) | 400 x 255 x 200 mm / 15.7 x 10 x 7.9 inch |
| Price in first year of sale | 115.00 RM + |
Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
All listed radios etc. from Reico Radio, Max Reinhardt & Co.; Berlin
Here you find 142 models, 83 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
