• Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 238394

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); 2 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 125 / 2 x 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

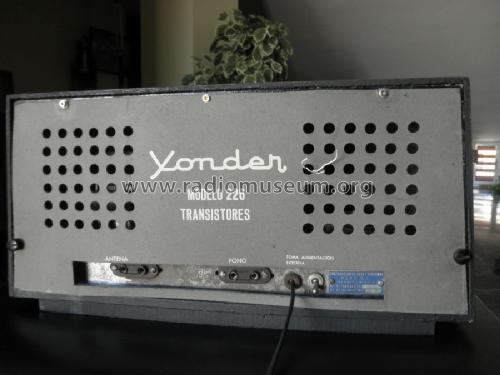

  • Model: Yonder 226 - Reko, Yonder; Valencia
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 450 x 220 x 180 mm / 17.7 x 8.7 x 7.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Literature/Schematics (1)
  • ESQUEMA AUTOELABORADO
