Tonica RX80

• Country
• Germany

• Manufacturer / Brand
• REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)

• Year
• 1985 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86914

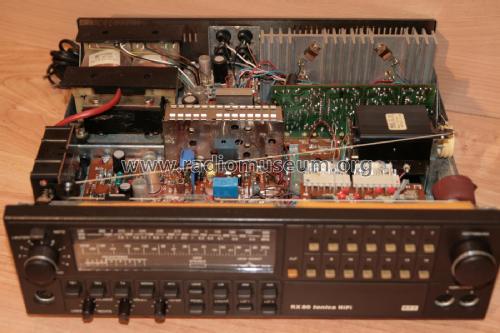

• Picture

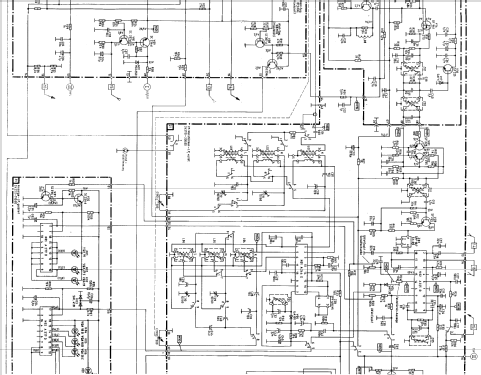

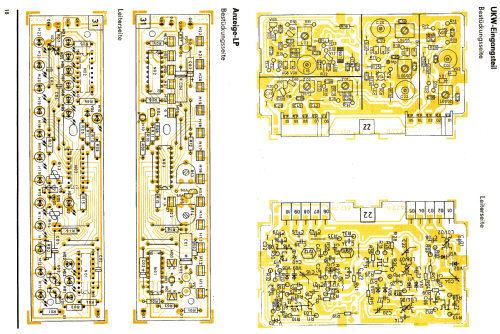

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 38

• Semiconductors
• SM200 BF961 SF225 SF235 SF245 SC236 SC237 SC307 SC239 SF827 SD337 SD338 КТ819 or. KD606 SD336 MAA550 U710D U711D B342D A225D A244D A290D A277D A274D B082D

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (70 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Tonica RX80 - REMA, Fabrik für Rundfunk,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 390 x 125 x 320 mm / 15.4 x 4.9 x 12.6 inch

• Notes

• 20 ICs, 43 Dioden, 38LEDs, Piezofilter bei AM und FM, 4-fach abgestimmter FET-Tuner.

  Entwicklung aus dem Zentrallaboratorium für Rundfunk- und Fernsehempfangstechnik in Dresden (ZRF Dresden).

  Endstufe 2x 25W Sinus und 2x 35W Musikleistung an 4 Ω.

  Halbleiter nur einmal erwähnt.
