• Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 99996
    • Brand: AMO (A.M.O.)

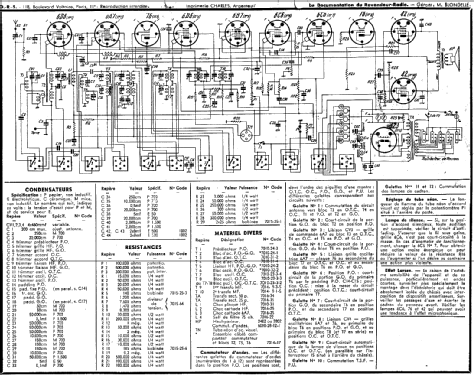

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 125 kHz
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 100, 110, 125, 150, 200, 210, 225, 235, 250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 24 cm = 9.4 inch
  • Power out
  • 8 W (unknown quality)
  • from Radiomuseum.org
  • Model: A411 - AMO A.M.O, Renard et Moiroux;
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes
  • Dial lamp: 11x 6,3V/0,3A
  • Circuit diagram reference
  • La Documentation du Revendeur - Radio
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
