• Country
• Italy

• Manufacturer / Brand
• REOM - Sintomagic; Italy

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 101061

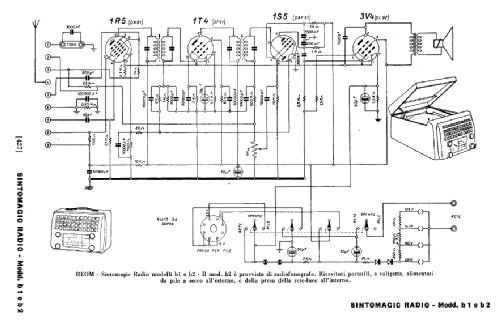

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 or DK91 1T4 or DF91 1S5 or DAF91 3V4

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Details
• Record Player (not changer)

• Power type and voltage
• Line / Batteries (any type) / 125; 140; 160; 220 / 7,5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: B2 - REOM - Sintomagic; Italy

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Serie B. Alimentazione: Batterie a secco all'esterno collegate con spina/presa octal. Alimentatore da rete in alternata interno all'apparecchio. Dallo stesso ingresso può essere alimentato in Corrente Continua. Ingresso per giradischi.
  Nessuno schema indica la parte Alta Frequenza.

  Il telaio è collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

  Mobile con maniglia di trasporto.
  Power supply: battery and AC/DC.
  Chassis connected to the mains. We do NOT always state such cases - since often the uploader does not know.

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 275)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
