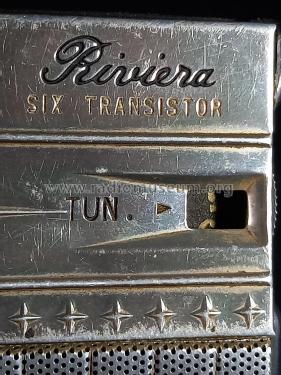

Riviera Six Transistor RV62

Riviera Six Transistor RV62; Republic Transistor (ID = 2261927) Radio
Use red slider bar for more.
Riviera Six Transistor RV62; Republic Transistor (ID = 2261927) Radio
Republic Transistor: Riviera Six Transistor RV62 [Radio] ID = 2261927 1000x1039
Select picture or schematic to display from thumbnails on the right and click for download.
For model Riviera Six Transistor RV62, Republic Transistor Corp.; Hong Kong:
Label inside Republic Riviera RV62

Country:  Hong Kong
Manufacturer / Brand:  Republic Transistor Corp.; Hong Kong
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA142 2SA141 2SA141 2SB135 2SB136 2SB136 MD60
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Riviera Six Transistor RV62 - Republic Transistor Corp.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 67 x 109 x 31 mm / 2.6 x 4.3 x 1.2 inch
Notes

Civil Defense marks on station dial.

See also similar models Americana Riviera Six Transistor RV62 and model Riviera Six Transistor marked "Empire".

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
