Riviera Six Transistor

Riviera Six Transistor ; Unknown - CUSTOM (ID = 2576534) Radio
Riviera Six Transistor ; Unknown - CUSTOM (ID = 2576530) Radio Riviera Six Transistor ; Unknown - CUSTOM (ID = 2576533) Radio
Riviera Six Transistor ; Unknown - CUSTOM (ID = 2576529) Radio Riviera Six Transistor ; Unknown - CUSTOM (ID = 2576531) Radio
Riviera Six Transistor ; Unknown - CUSTOM (ID = 2576532) Radio Riviera Six Transistor ; Unknown - CUSTOM (ID = 2261929) Radio
Riviera Six Transistor ; Unknown - CUSTOM (ID = 2261933) Radio Riviera Six Transistor ; Unknown - CUSTOM (ID = 2261934) Radio
Riviera Six Transistor ; Unknown - CUSTOM (ID = 2261930) Radio Riviera Six Transistor ; Unknown - CUSTOM (ID = 2261931) Radio
Use red slider bar for more.

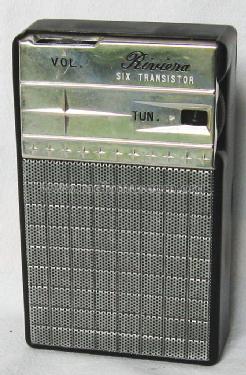

Riviera Six Transistor ; Unknown - CUSTOM (ID = 2576530) Radio
Unknown - CUSTOM: Riviera Six Transistor [Radio] ID = 2576530 674x1024
Select picture or schematic to display from thumbnails on the right and click for download.
For model Riviera Six Transistor, Unknown - CUSTOM BUILT: Hong Kong (HK)

Country:  Hong Kong
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Hong Kong (HK)
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA142 2SA141 2SA141 2SB135 2SB136 2SB136 MD60
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 cm = 2.1 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Riviera Six Transistor - Unknown - CUSTOM BUILT: Hong
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 67 x 109 x 31 mm / 2.6 x 4.3 x 1.2 inch
Notes

Pocket AM Radio Model Riviera Six Transistor. Alumnium front, Genuine Cowhide Leather Case.

Tuning Range: 535 - 1605 kHz
Civil Defense marks on station dial.

See also similar models Americana Riviera Six Transistors RV62, case marked "Hongkong" instead of "Empire", and Republic Riviera Six Transistors RV62.

Made in Hong Kong.

Net weight (2.2 lb = 1 kg) 0.220 kg / 0 lb 7.8 oz (0.485 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
